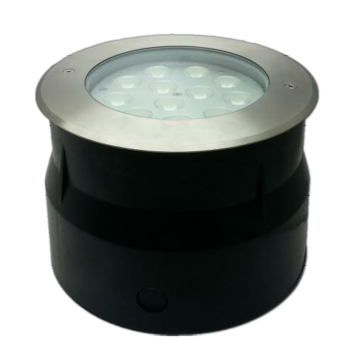

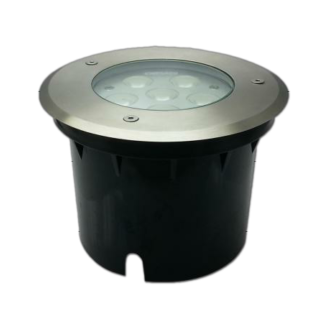

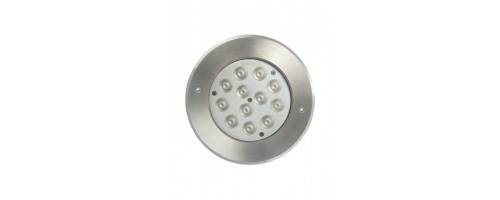

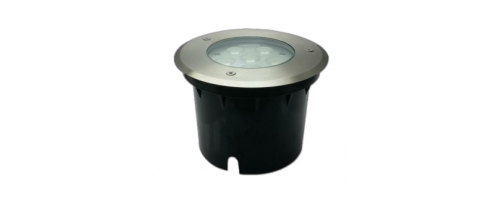

The OLUX® LED IN-GROUND luminaire is a rugged, versatile and affordable solution for outdoor in-ground, up light illumination. With two sizes, three color temperatures and three beam angles available, this outdoor luminaire is sure to meet even the most demanding applications. Suitable for installation in the ground or wall-recessed, the fixture is robust and holds up to 2,000kg in static load – making it the perfect light for demanding areas such as parking lots, bridges and public squares. Whether illuminating a building, lighting a sculpture or accenting features, the OLUX® LED IN-GROUND luminaire opens up a wide range of creative options and design capabilities.
Product Benefits
— Cool to touch, maximum
65˚C surface temperature at
40˚C ambient
— Stainless steel trim ring, tempered glass, die-cast aluminum housing
— Durable fixture. Able to withstand a 2,000kg static load
— Choice of three color temperatures: warm white (3000K), neutral white (4000K) and cool white (5700K)
— Available in three beam angles: 12˚, 20˚ and 30˚
— Good protection against water and dust ingress and impact, IP67 and
— IK09 certified
— Long lifetime up to 35,000 hours at L70, 35°C
Advantages & Benefits
— Ruggedly constructed in-ground fixture for outdoor applications

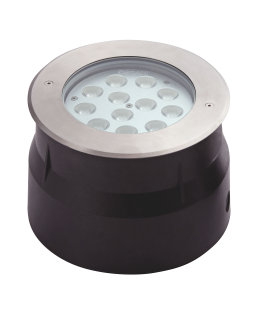

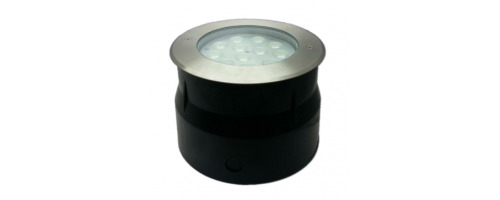

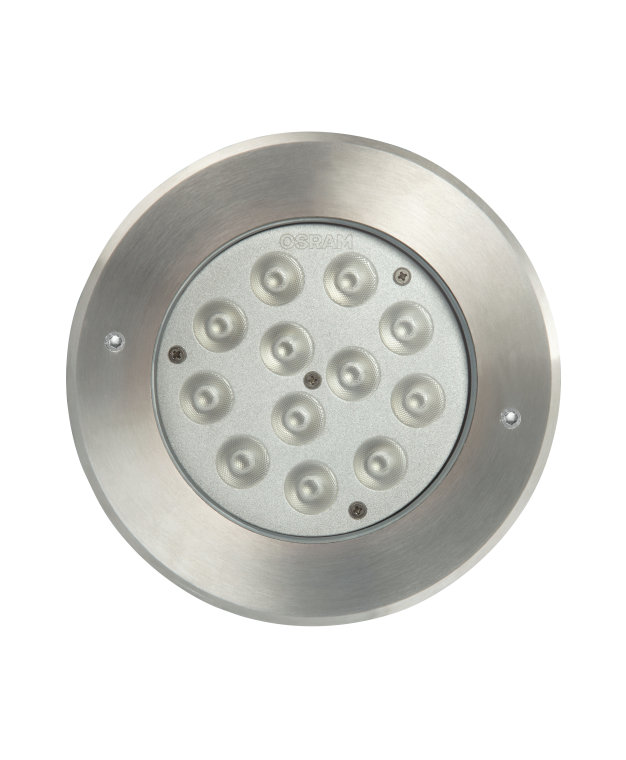

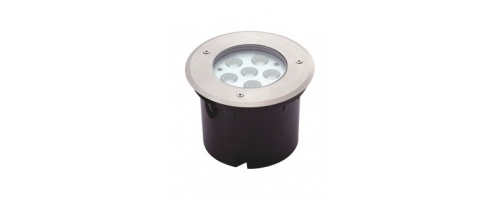

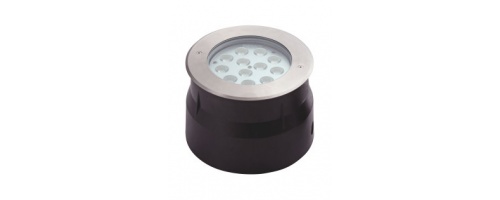

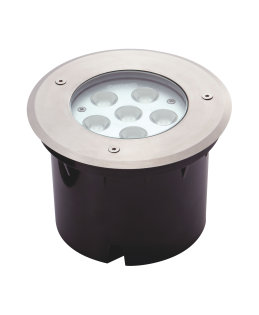

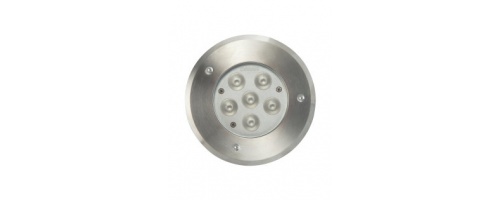

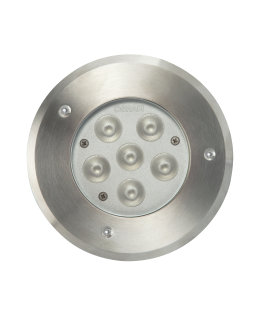

— Available in two sizes: S type with 7W power and 500-760 lumens, M type with 12W power and 960-1360 lumens
— Three beam angles and color temperatures offer flexibility in landscape design
— Shipped with installation kit
Ideal Applications
— Requires no external driver, voltage:
220-240AC
— Landscape: bridges, trees, shrubs and statues
— Urban: outdoor bars, restaurants, walkways, city squares, business plazas and pedestrian malls
— Architectural: accent and façade
